Micro Imprint Formulations
Revolutionize the performance capabilities of your Display and Optical Sensor applications with Pixelligent’s PixMicro™ formulations.
PixMicro™ High Index NIL Formulations
PixMicro™ formulations offer a range of refractive indices and UV stability to meet a broad range of customer requirements. PixMicro™ products deliver micro-imprinted microlens array structures with market-leading optical performance for waveguides, Diffractive Optical Elements (DOE), and light guides used in Extended Reality, Displays, and other Optoelectronic applications. With refractive indices ranging from 1.65 to 1.9 and a wide range of viscosities, PixMicro™ products can be tuned to optimize each customer’s unique devices and process windows.
Enabling Next-Generation Optoelectronic Applications
PixMicro™ high-refractive index micro-imprintable products are compatible with glass and plastic substrates, commercially available stamps, and industry-standard manufacturing for a broad array of applications.
>1.65 for zirconia formulations
>1.65 for zirconia formulations
Advantages of PixMicro™ Products
PixMicro™ enabled high-RI micro-imprintable products have the lowest haze and highest transparency across all visible wavelengths, delivering the highest value available on the market. These formulations are also compatible with industry-standard stamps.
Explore Our PixMicro™ Product Catalogue

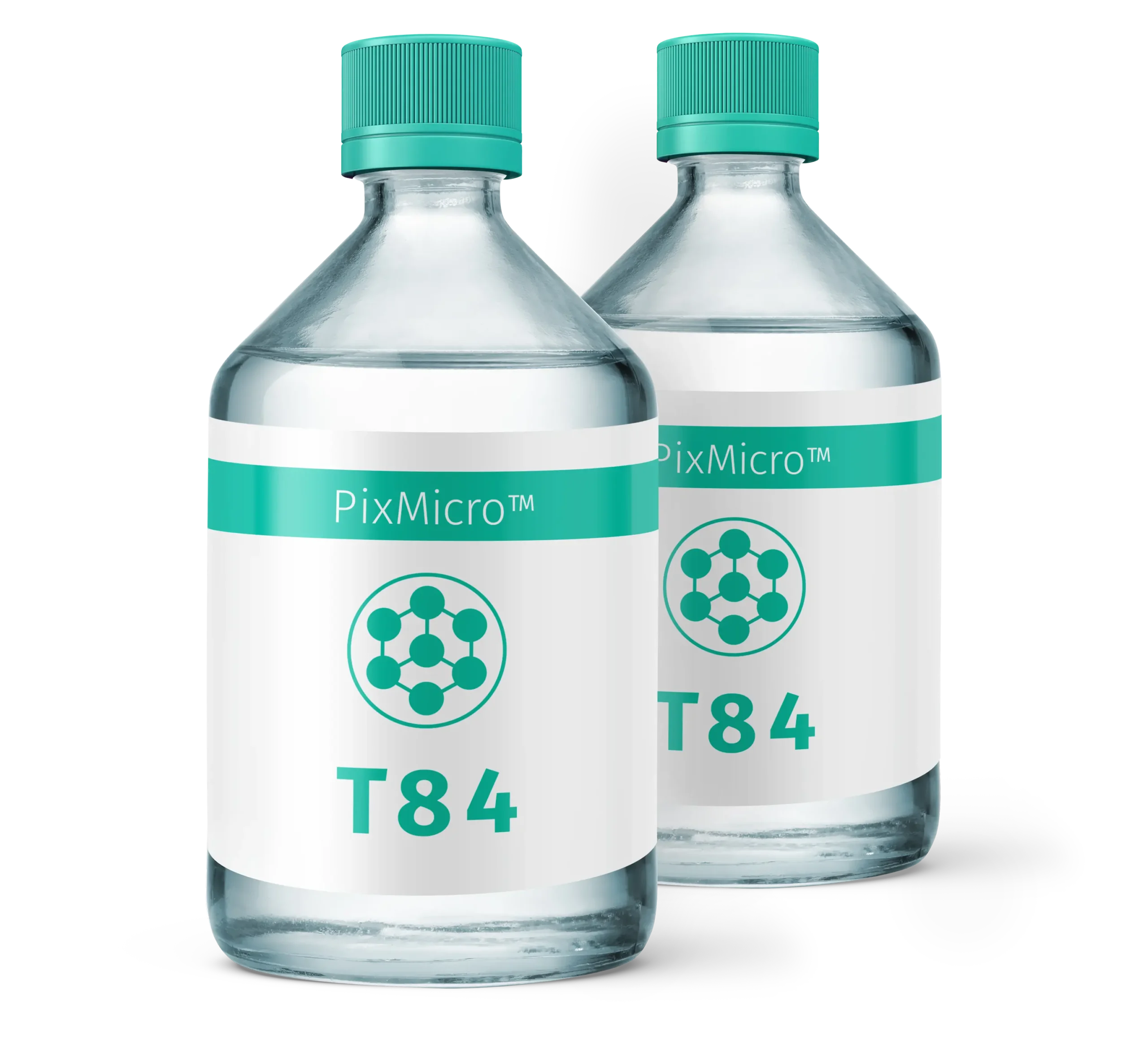

- Nanocrystal: PixClear Titania 20nm
- Solvent Type: None
- Dispensing Method: Spin Coat / Slot Die
- Refractive index: 1.84
- Percent Transparency: >90%
- Film Thickness Range: 5 – 50 μm
- Curing Method: UV
- Percent Haze: <0.1%
- Low shrinkage
- Excellent structural fidelity and mechanical properties
Customized versions of PixMicro™ Designer Composites™ available upon request

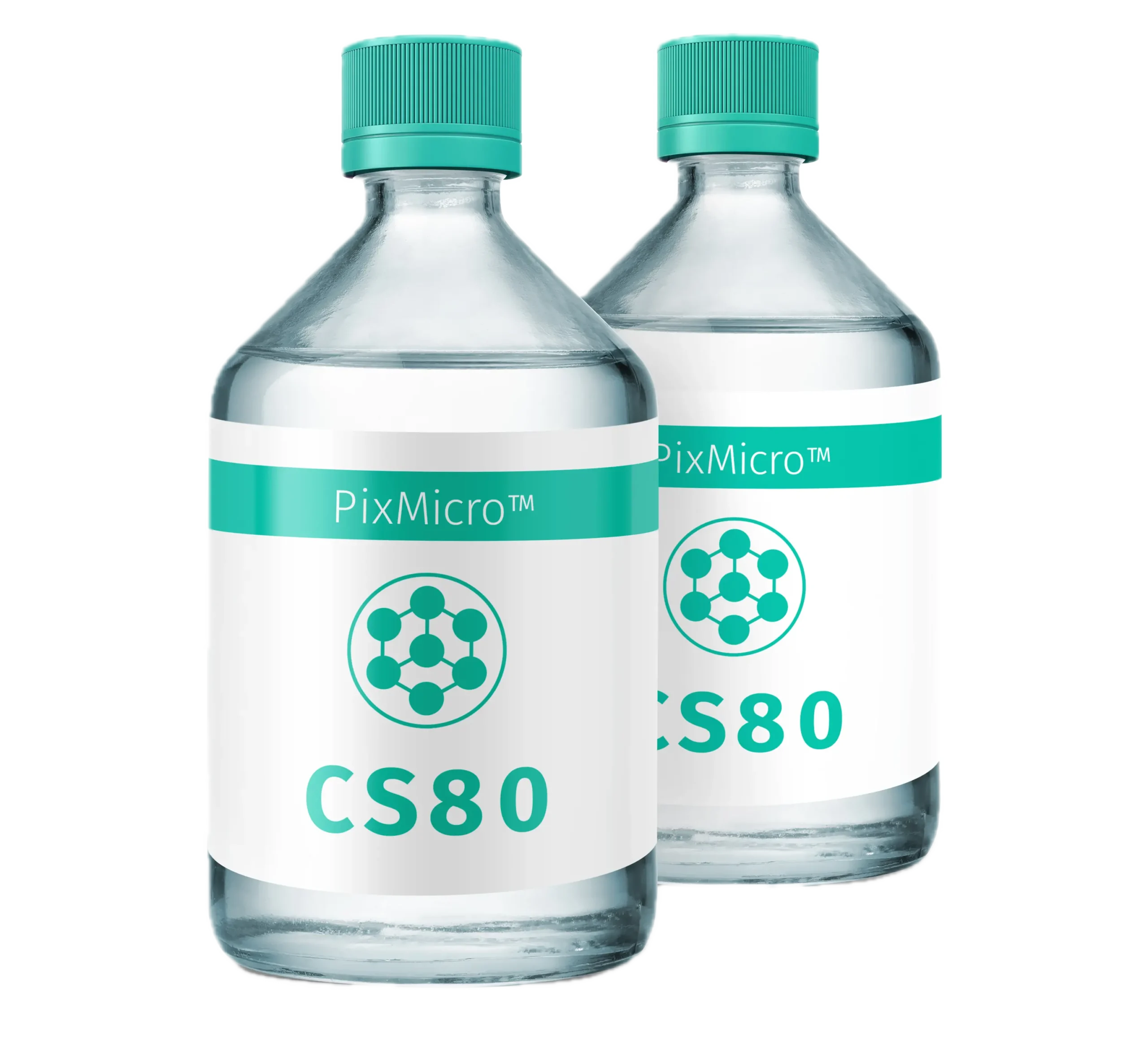

- Nanocrystal: PixClear Coreshell 20nm
- Solvent Type: None
- Dispensing Method: Spin Coat / Slot Die
- Refractive index: 1.80
- Percent Transparency: >94%
- Film Thickness Range: 5 – 50 μm
- Curing Method: UV
- Percent Haze: <0.2%
- Low shrinkage
- Excellent structural fidelity and mechanical properties
Customized versions of PixMicro™ Designer Composites™ available upon request
- Nanocrystal: PixClear Zirconia 10nm
- Solvent Type: None
- Dispensing Method: Spin Coat / Slot Die
- Refractive index: 1.66
- Percent Transparency: >98%
- Film Thickness Range: 5 – 50 μm
- Curing Method: UV
- Percent Haze: <0.05%
- Low shrinkage
- Excellent structural fidelity and mechanical properties
Customized versions of PixMicro™ Designer Composites™ available upon request

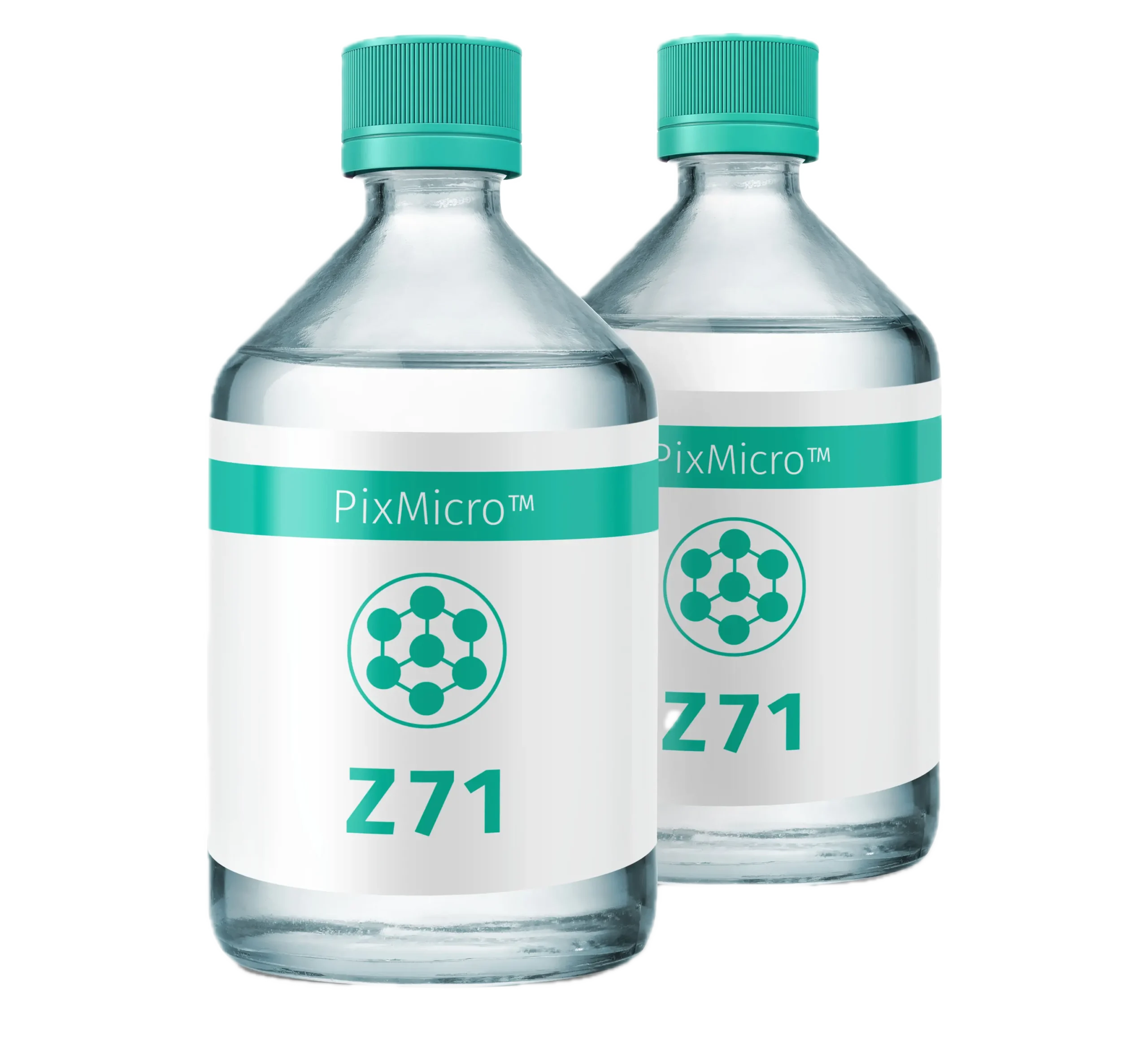

- Nanocrystal: PixClear Zirconia 10nm
- Solvent Type: None
- Dispensing Method: Spin Coat / Slot Die
- Refractive index: 1.71
- Percent Transparency: >95%
- Film Thickness Range: 5 – 50 μm
- Curing Method: UV
- Percent Haze: <0.08%
- Low shrinkage
- Excellent structural fidelity and mechanical properties
Customized versions of PixMicro™ Designer Composites™ available upon request
PixMicro™ Processing
Pixelligent’s PixMicro™ formulations can be applied using a broad range of processes, including spin coating and jet coating, followed by imprinting and UV curing. These formulations are also compatible with industry-standard stamp material.
PixMicro™ Formulation Resources
Contact Us to Learn More About
Our PixMicro™ Standard Formulations and Custom Designer Composite® Manufacturing Services
Contact us for information on our PixNIL, PixJet, PixMicro, and Designer Composites custom manufacturing services for customized versions of our PixNIL, PixJet, PixMicro, and Designer Composite formulated products for your next generation nanoimprint lithography (NIL), XR, display, optoelectronic applications, and thin-film applications.
Contact Us
