PixClear® For XR
That’s Where PixClear® Comes In
PixClear’s high refractive index nanocrystals and formulations allow Pixelligent to achieve the widest FoV waveguides available in the XR market. Our PixClear® formulations can be applied using nanoimprint lithography (NIL) and ink jet processes to create optical structures that feature:
- Refractive Indices Of 1.7-1.9+
- Robust Mechanical Properties That Are Critical to The Waveguide Structures
- High Transparency of > 95%
- Low Haze of < 0.10
The Extended Reality (XR) market, including Augmented Reality (AR), Virtual Reality (VR), and Mixed Reality (MR) devices, has the potential to redefine and disrupt the personal communication device market in the same way mobile phones and smartphones did in the 1990s and 2000s.
Like mobile phones and smartphones, XR device manufacturing and development relies on certain key technologies. Central among these are the optical waveguides applied to the lenses that take the image projected on the inside of a lens and project it to the other side of the lens, delivering a clear image to the user. Our PixClear® products enable the highest-index waveguides, with the most robust mechanical properties available in the market.
High Refractive Index & Uniformity
High Transperancy
Low Haze And Absorption
Excellent Mechanical Properties
Nanoimprintable
Jet Coating Capable
Solvent or Solvent-Free
PixJet® Inkettable Formulations
Up to 1.65RI
PixJet®SFZ5
- Solvent Type: None
- Dispensing Method: Inkjet
- Refractive index (RI) of 1.65
- >97% transmission across visible wavelengths
- <0.2% haze
- High Print Head Heating
- Tunable Surface Tension
- Excellent film thickness
- Excellent wetting of display substrates
PixNIL® Nanoimprintable Formulations
Up to 1.9RI
PixNIL®ST2
- Solvent Type: PGMEA
- Dispensing Method: Spin Coat / Slot Die / Jet Coat
- Refractive index (RI) of 1.9
- >93% transparency across all visible wavelengths
- <0.2% haze
- Low shrinkage
- Excellent structural fidelity and mechanical properties
- Enables larger FOV and more immersive AR experience
PixNIL®SZ1
- Solvent Type: PGMEA
- Dispensing Method: Spin Coat / Slot Die / Jet Coat
- Refractive index (RI) of 1.7
- >97% transparency across visible wavelengths
- <0.1% haze
- Low shrinkage
- Excellent structural fidelity and mechanical properties
- Enables larger FOV and more immersive AR experience

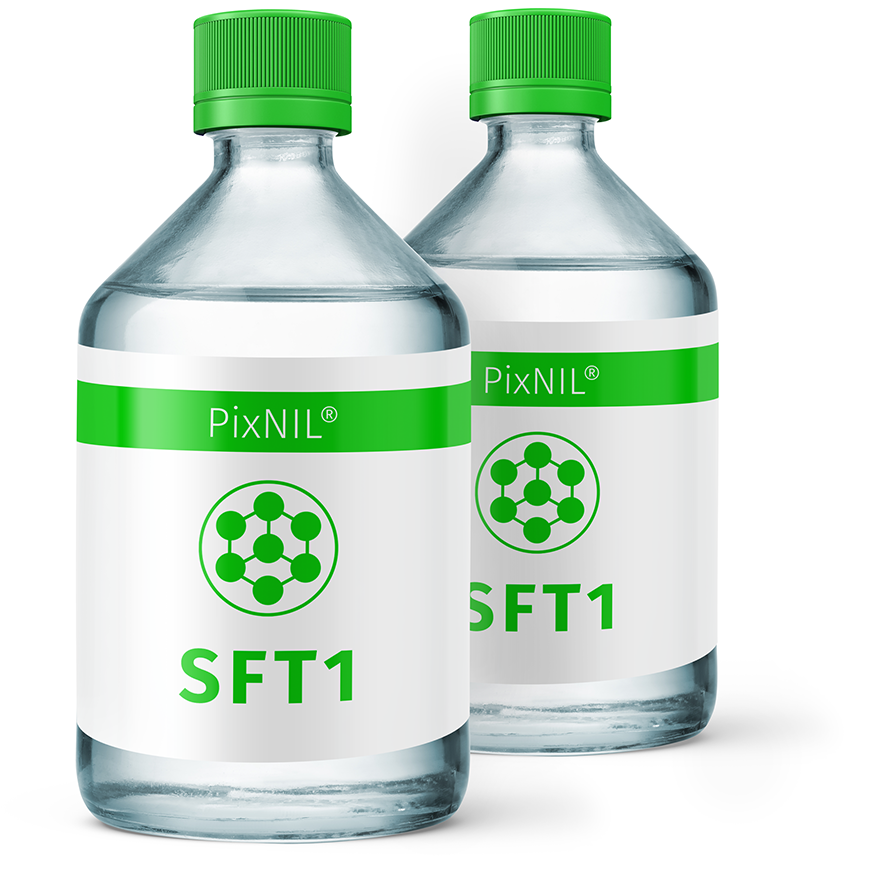

PixNIL®SFT1
- Solvent Type: None
- Dispensing Method: Spin Coat / Slot Die / Jet Coat
- Refractive index (RI) of 1.9
- >93% transparency across visible wavelengths
- <0.2% haze
- Low shrinkage
- Excellent structural fidelity and mechanical properties
- Enables larger FOV and more immersive AR experience
PixNIL®SFZ1
- Solvent Type: None
- Dispensing Method: Spin Coat / Slot Die / Jet Coat
- Refractive index (RI) of 1.7
- >93% transparency across visible wavelengths
- <0.2% haze
- Low shrinkage
- Excellent structural fidelity and mechanical properties
- Enables larger FOV and more immersive AR experience
PixClear® Titania Products
Up to 1.9RI
PTPG
- Compatible with polar solvents
- A 10nm capped TiO2 nanocrystal that contains no reactive functional groups designed for high compatibility in multiple polar solvents and monomers such as acrylates, siloxanes, and epoxies.
- Custom formulations available upon request.
LTPF
- Compatible with polar solvents
- A 20nm capped TiO2 nanocrystal that contains acrylate functionality designed to crosslink with methacrylate and acrylate systems.
- Larger nanocrystal provides the highest refractive index available on the market.
- Custom formulations available upon request.
PixClear® Zirconia Products
UP TO 1.8RI
PCPC
- Available in fully formulated products & dispersions.
- Compatible with polar solvents
- A 10nm capped ZrO2 nanocrystal that contains acrylate functionality designed crosslink with acrylate and vinyl monomers.
- Balanced surface coverage that provides both improved formulation stability and dispersibility without sacrificing refractive index.
- Custom formulations available upon request.
PCPB
- Compatible with polar solvents
- A 10nm capped ZrO2 nanocrystal that contains methacrylate functionality designed to crosslink with methacrylate and acrylate systems.
- Medium surface coverage of capping materials that provides improved dispersibility and high refractive index.
- Custom formulations available upon request.
PCPR
- Compatible with polar solvents
- A 10nm capped ZrO2 nanocrystal that contains methacrylate functionality designed to crosslink in methacrylate and acrylate systems.
- Highest surface coverage of capping materials and functionality that enables high crosslinking density and provides improved chemical resistance.
- Custom formulations available upon request.
PCPG
- Compatible with polar solvents
- A 10nm capped ZrO2 nanocrystal that contains no reactive functional groups designed for high compatibility in multiple polar solvents and monomers such as acrylate, siloxane, and epoxy.
- Lower surface coverage of capping materials that provides higher refractive indices.
- Custom formulations available upon request.
PCPN
- Compatible with polar solvents
- A 10nm capped ZrO2 nanocrystal that contains no reactive functional groups designed for highest compatibility in multiple polar solvents and monomers such as acrylate, siloxane, and epoxy.
- High surface coverage of capping materials provides improved compatibility and stability to chemical reactivity.
- Custom formulations available upon request.
Nanocrystal Capping Variations and Impact on RI
